Welcome to Digital Twins for Physical Systems

Introduction

2024-01-08

An Introduction to Digital Twins: Chapter 1 Overview

adapted from here

Course outline

This is a new advanced course that is being developed during this term.

• Syllabus
• Schedule
• etc.

are all made available and constantly updated on

https://flexie.github.io/CSE-8803-Twin//

Objectives

By the end of the semester, you will be made familiar with …

• the concept of Digital Twins and how they interact with their environment
• Statistical Inverse Problems and Bayesian Inference
• techniques from Data Assimilation (DAT), Simulation-Based Inference (SBI), and Recursive Bayesian Inference (RBI), and Uncertainty Quantification [UQ]

For more on the Course outline, Topics, and Learning goals, see Goals.

Textbooks

Data assimilation: methods, algorithms, and applications	Asch, Bocquet, and Nodet (2016), Mark	SIAM, 2016
A toolbox for digital twins: from model-based to data-driven1	Asch (2022), Mark	SIAM, 2022

1. This 1000 page book is rather comprehensive. While the complete material is beyond this course, you are encouraged to use the extensive cross-referencing in this book to your advantage. This book is available in electronic form (pdf) when online on Georgia Tech Campus.

Journal Papers

A comprehensive review of digital twin—part 1: modeling and twinning enabling technologies	Thelen et al. (2022)	Springer, 2022
A comprehensive review of digital twin—part 2: roles of uncertainty quantification and optimization, a battery digital twin, and perspectives	Thelen et al. (2023)	Springer, 2022
Sequential Bayesian inference for uncertain nonlinear dynamic systems: A tutorial	Tatsis, Dertimanis, and Chatzi (2022)	Arxiv, 2022

Introduction

• Different definitions of Digital Twins
• Data Flows
• Dimensions Digital Twins
• the Inference Cycle

Definition of Digital Twin

Definition from (Asch 2022): “A set of virtual information constructs that mimics the structure, context, and behavior of an individual/unique physical asset, or a group of physical assets, is dynamically updated with data from its physical twin throughout its life cycle and informs decisions that realize value.”

• Definition by the Aerospace Industries Association
• Mirroring physical assets in a dynamic manner

Definition by IBM: “A digital twin is a virtual representation of an object or system that spans its lifecycle, is updated from real-time data, and uses simulation, machine learning and reasoning to help decision making.”

Definition of Digital Twin (cont’ed)

Definition from (National Academies of Sciences, Medicine, et al. 2023): “A digital twin is a set of virtual information constructs that mimics the structure, context, and behavior of a natural, engineered, or social system (or system-of-systems), is dynamically updated with data from its physical twin, has a predictive capability, and informs decisions that realize value. The bidirectional interaction between the virtual and the physical is central to the digital twin.”

Also see discussion Section 2 of “A comprehensive review of digital twin — part 1”.

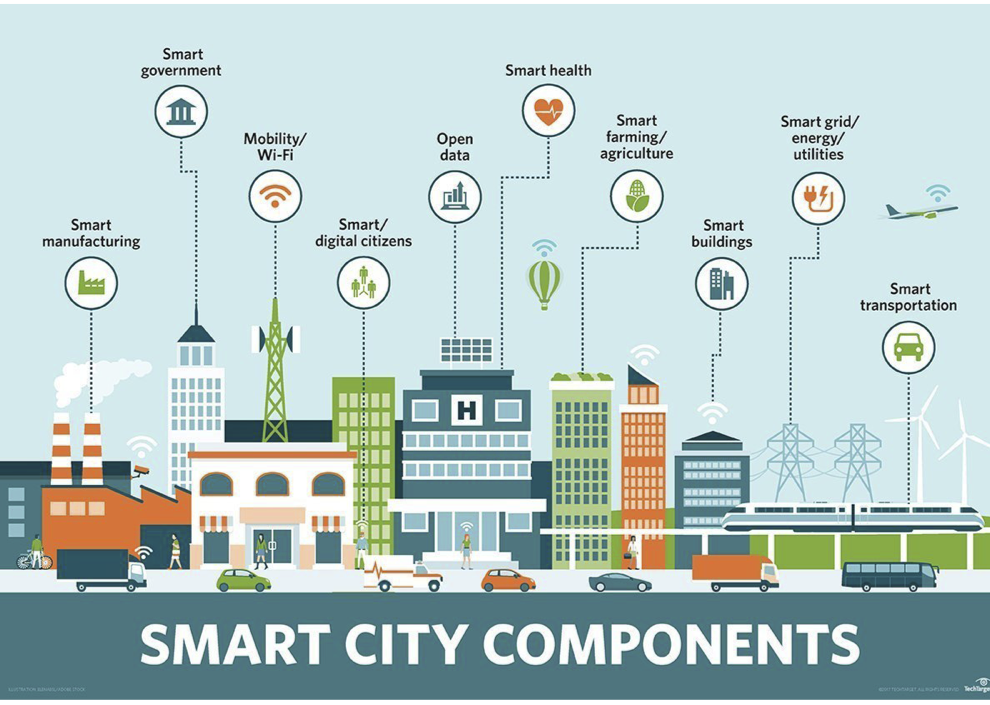

Cyber-Physical Systems (CPS)

• Model Systems of Systems (SoS) by equations
• How the two worlds—digital and physical—intertwine?
• How does the digital inform the physical, and how does the physical shape our understanding of digital processes?

Source

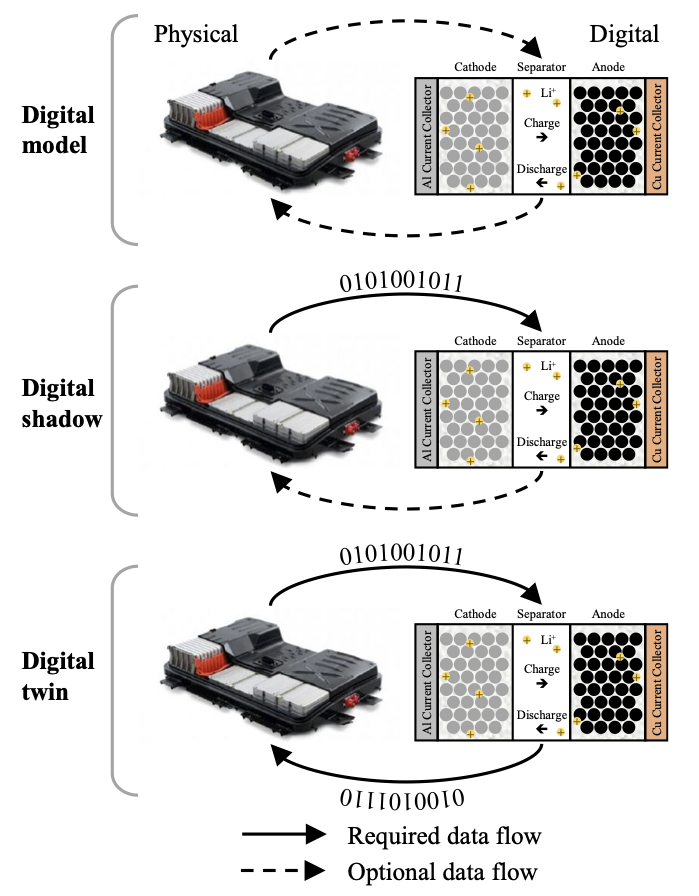

Data flows

• For a digital model, data flow between the physical space and virtual space is optional

• For a digital shadow, data flow is unidirectional from physical to digital.

• But for digital twin, the data flow has to be bidirectional. See Figure.

from (Thelen et al. 2022)

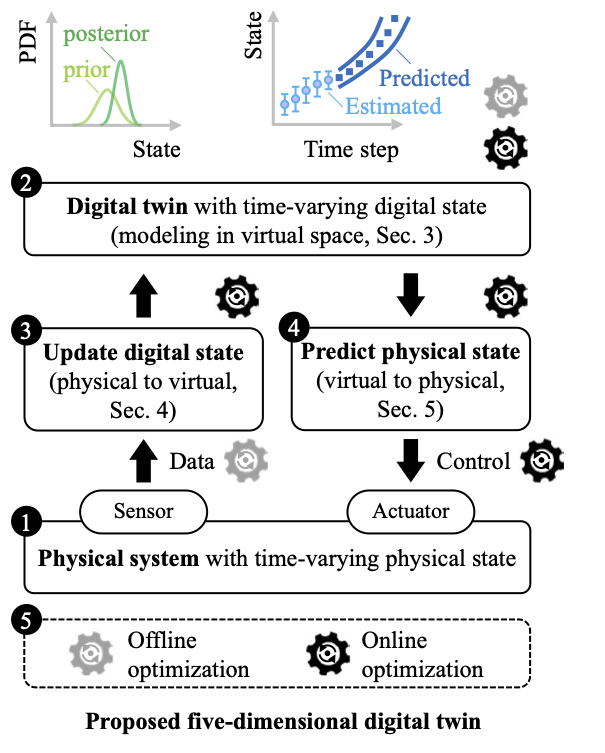

Five dimensional Digital Twin

\[\mathrm{DT} = \mathbb{F} (\mathrm{PS, DS, P2V, V2P, OPT})\]

five- dimensional digital twin model consists of

• a physical system (PS),

• a digital system (DS),

• an updating engine (P2V),

• a prediction engine (V2P),

• and an optimization dimension (OPT).

\(\mathbb{F}(⋅)\) integrates all five dimensions together to define a Digital Twin.

from (Thelen et al. 2022)

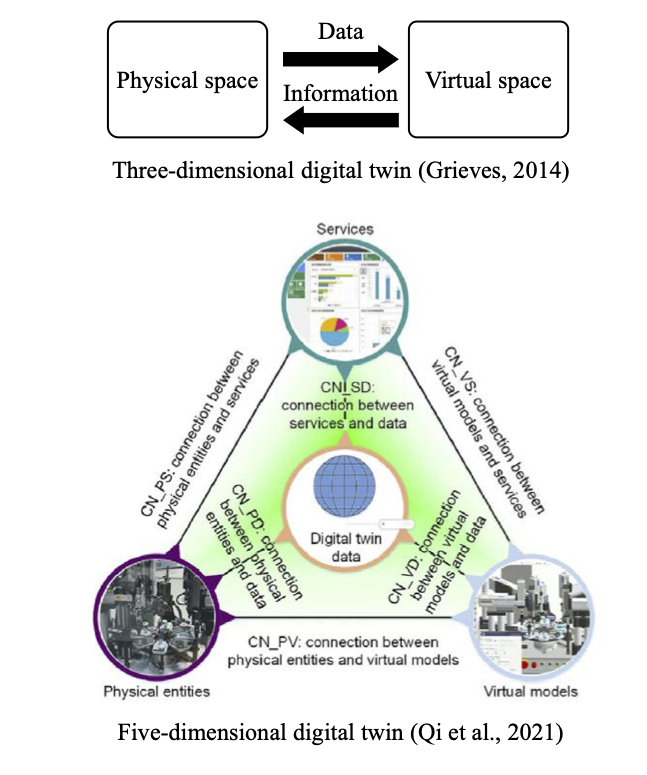

Five dimensions

\[\mathrm{DT} = \mathbb{F} (\mathrm{PS, DS, P2V, V2P, OPT})\]

from (Thelen et al. 2022)

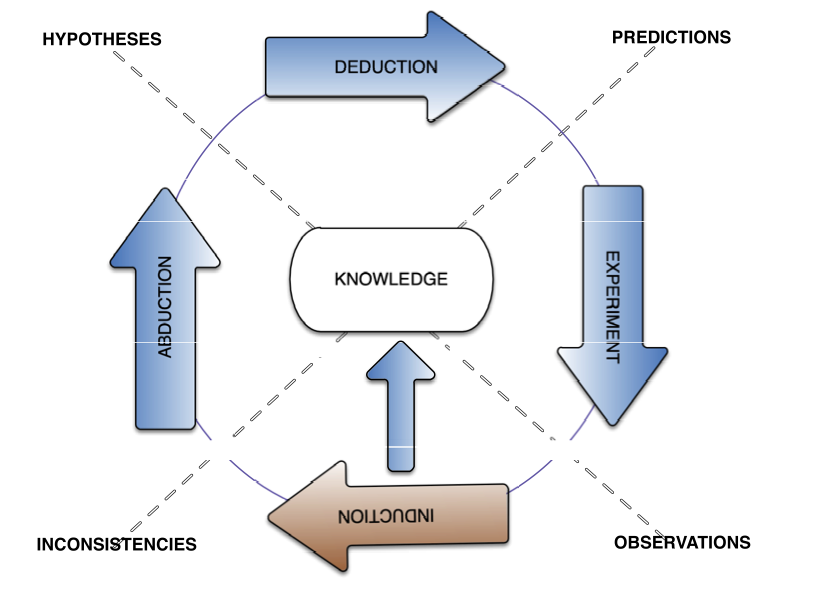

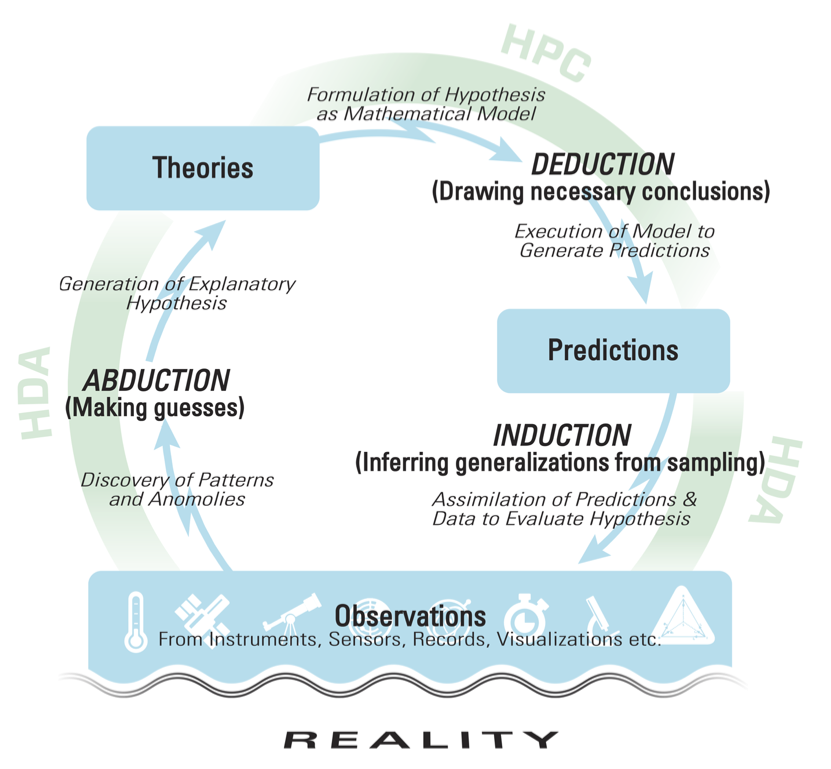

The Inference Cycle

• Scientific method — inferential process
• Abduction — going from (unexplained) effect to (possible) cause
• Deduction — going from cause to effect
• Induction — going from specific to general

Source Asch (2022)

The Concept of a Digital Twin

• the availability of (large) volumes of (often real-time) data,

• the accessibility to this data,

• the tools and implementations of AI-based algorithms,

• the body of knowledge of mathematical models,

• the readiness and low cost of computational devices,

Necessary ingredients for a Digital Twin that learns during its life cycle

• consists of static part — initial model, design, and

• dynamic part — includes the simulation process, coupled with data acquisition, and finally autoupdating.

The Spectrum of Digital Twins

• From model-driven to data-driven
• Importance of models, data, and competencies

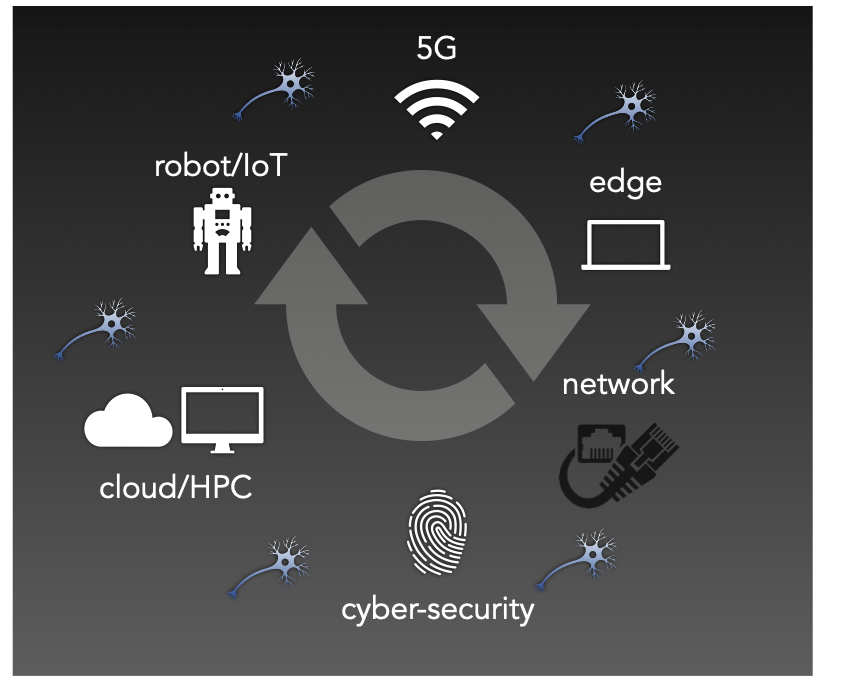

Digital Twins in the Digital Continuum

• Interaction with digital infrastructure
• Cloud computing, IoT, and cybersecurity
• Emphasis in this course will be on monitoring & control of physical systems ruled by PDEs
  • geological CO₂ storage
  • battery life

Source Asch (2022)

Geological Carbon Storage

• coupling of fluid-flow physics and
• wave physics

Models, Data, and Coupling in Digital Twins

Questions:

1. What is meant by a “model”?

2. What are data to be used for?

3. How, if possible, can we couple the above two to construct the most informative DT?

Will be discussing two types of models throughout the book:

1. Equation-based models that are derived, most often, from some conservation laws.
2. Statistical, data-driven models that are based on measured data and its analysis.

A good statistical model: should attain a good balance between under/overfitting.

Physical models: need to capture the higher order terms and neglect small terms.

Bloated models will often be difficult to solve numerically.

Examples and Use Cases

• Predictive maintenance, personalized medicine, sports, agriculture, geophysics

Recommended Approach—The Triple-Loop Method

Three loops: Space and time, optimization, decision-making

• Loops over space and time and solution of the physical problem in the inner loop.

• Optimization in the outer loop, including control, solution of an inverse problem, parameter estimation, uncertainty quantification, and multifidelity modeling using surrogates.

• Decision making in the outer-outer loop— preventative maintenance, shutting down operations …

Important to ensure trustworthiness of the DT - checking operational and validity regimes of the model, and - implement an expert system based on engineering experience.

Future Directions

• Evolution from simple to AI-integrated systems
• Theoretical and practical advancements
• Facilitates a more general interpretation where we can map machine learning techniques, or AI, to any of the stages

from Asch (2022)

References

Asch, Mark. 2022. A Toolbox for Digital Twins: From Model-Based to Data-Driven. SIAM.

Asch, Mark, Marc Bocquet, and Maëlle Nodet. 2016. Data Assimilation: Methods, Algorithms, and Applications. SIAM.

National Academies of Sciences, Engineering, Medicine, et al. 2023. “Foundational Research Gaps and Future Directions for Digital Twins.”

Tatsis, Konstantinos E, Vasilis K Dertimanis, and Eleni N Chatzi. 2022. “Sequential Bayesian Inference for Uncertain Nonlinear Dynamic Systems: A Tutorial.” arXiv Preprint arXiv:2201.08180.

Thelen, Adam, Xiaoge Zhang, Olga Fink, Yan Lu, Sayan Ghosh, Byeng D Youn, Michael D Todd, Sankaran Mahadevan, Chao Hu, and Zhen Hu. 2022. “A Comprehensive Review of Digital Twin—Part 1: Modeling and Twinning Enabling Technologies.” Structural and Multidisciplinary Optimization 65 (12): 354.

———. 2023. “A Comprehensive Review of Digital Twin—Part 2: Roles of Uncertainty Quantification and Optimization, a Battery Digital Twin, and Perspectives.” Structural and Multidisciplinary Optimization 66 (1): 1.
